Multi-Service Access Node
Ideal core/edge solution for migration to packet
The Megaplex-4’s ability to handle a broad range of Ethernet, data and voice services, as well as a large variety of network technologies, in a single compact managed node, makes it an ideal solution for carriers and service providers. The device also provides a perfect fit for large enterprises, utilities and transportation companies who require an efficient way to transport and provision multiple legacy and next-generation services over their high capacity pipes. Megaplex-4 can be used as a central aggregation unit for TDM and Ethernet CPEs that are connected over various access link technologies, e.g., HSDSL and SDH/SONET.
The Megaplex-4 is available with a cable management solution to reduce storage space and handling, and eliminate cable waste.

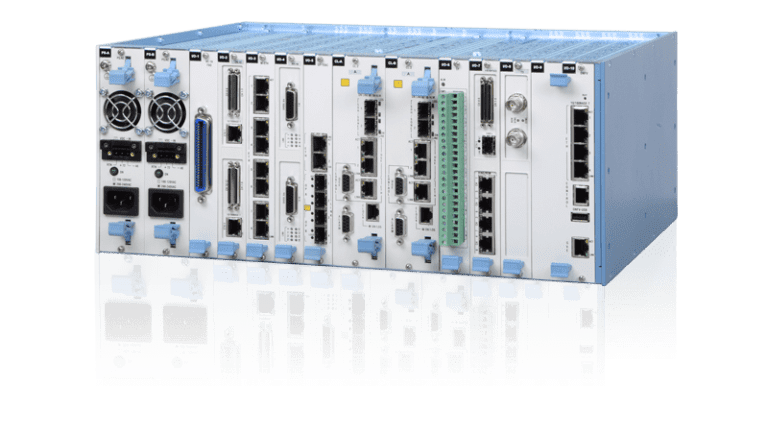

Megaplex-4 (4u)
Next-Gen Multiservice Access Node
Key Take Aways
migration to next-gen networks with Ethernet & TDM in a single device
multiservice support maximizes flexibility
Ethernet ensures service quality and lowers OpEx with SLA validation and performance monitoring
service uptime and resiliency for mission-critical applications with multiple redundancy protocols
software appliances – the easiest way to introduce new services and applications on existing platforms
solution, deployed worldwide
Quick Specs

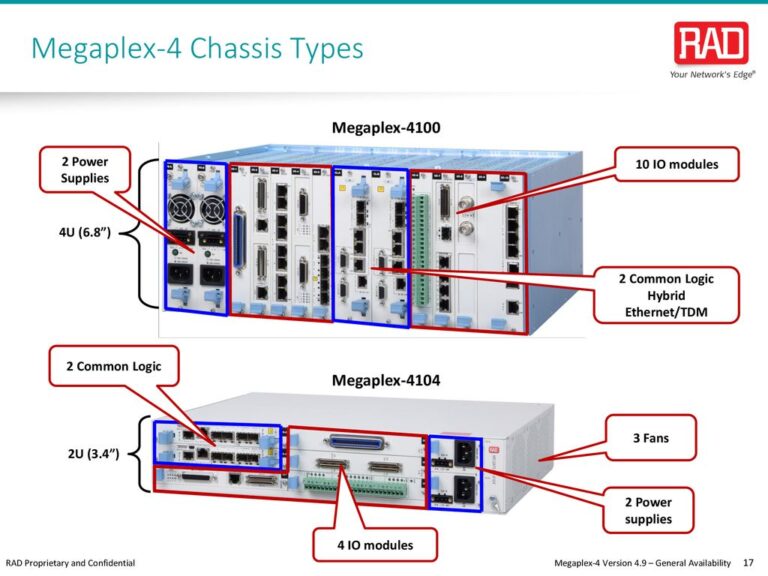

- Modular 4U or 2U 19-inch units housing multiple I/O modules
- Carrier-class reliability with hardware, service and system redundancy
- Hardened and certified for IEEE 1613, including fanless operation for power utilities and EN 50121-4 for railways
- Integrated MPLS switch and IP router
- MEF Carrier Ethernet 2.0-certified with traffic management, performance monitoring and Ethernet OAM

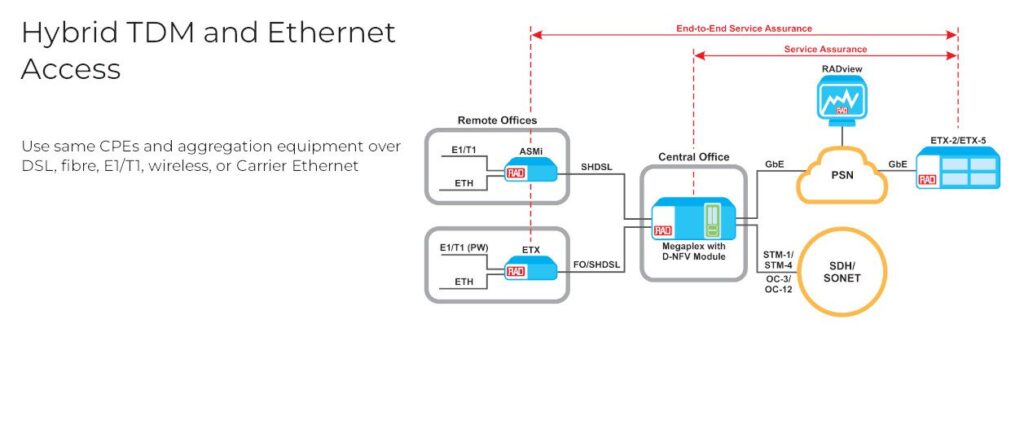

- Hybrid Ethernet and TDM architecture supporting various services up to STM-4/OC-12 and multi-GbE
- Three-tier built-in cyber security, including 802.1x and MACsec
- Non-blocking cross connect for a high volume of DS0 channels

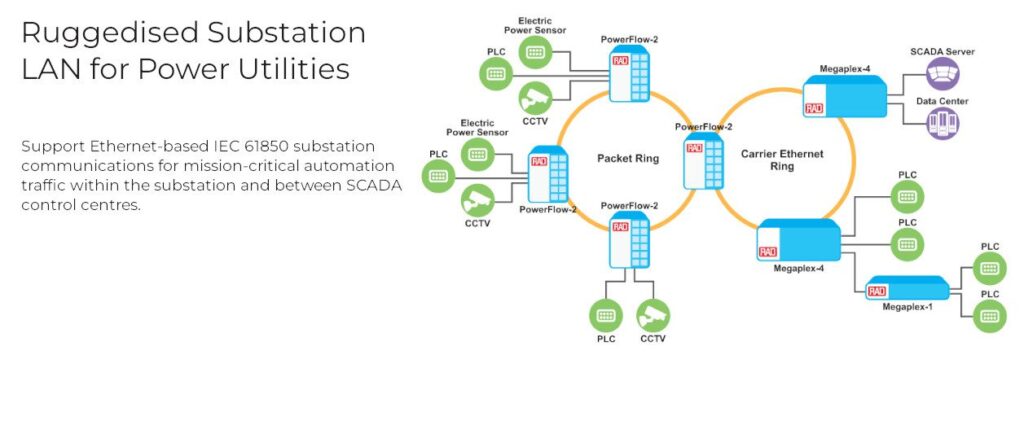

- Built-in support for distance and differential Teleprotection for power utility applications
- Integral xDSL copper modems and fibre multiplexer cards
- Voice compression, terminal server, serial multiplexer and Omni voice conferencing modules
- Pluggable x86 D-NFV server module for hosting virtual functions and applications
- Interoperability with existing TDM equipment (Nokia, Newbridge)
