SmartNode – VoIP Routers
Achieve legacy voice migration over IP network
The SmartNode family is a next-generation VoIP product family. It fits the gateway needs of small to large-sized enterprises looking for cost-effective ways to bridge legacy systems on multiple sites or connect them to a public IP telephony service. A key advantage is managing intra-company dialling plans, including PSTN breakout for long-distance call charges between branch offices.
What is a VoIP Router
Features & Benefits
A SmartNode VoIP router can provide PSTN fallback with voice-and-data survivability for business continuity in case of an Internet or IP network failure. While most networks today employ session initiation protocol (SIP) for voice encoding, the earlier standard, H.323, is still in use. The best high-quality products can support both protocols, which are encapsulated in the data payload of the real-time protocol (RTP) protocol data unit (PDU). Another benefit is the capability to provide quality of service (QoS) mechanisms, especially in the downstream path.
Key Take Aways
Expertise in analogue migration. Multiple ISDN and analogue access protocols and options. Rich voice features to interop with a wide range of on-premise devices. Multiple SIP trunks to join various NGN/IMS networks.
Device stating & configuration using an embedded GUI-based tool for easy deployment. Support various management protocols, including Netconf. Easy monitoring (flavour statistics, events, traces, etc.)
Voice gateways feature up to 24 FXS and 2 FXO ports for analogue devices such as phones, modems, or fax machines, and up to 8 BRI for ISDN PBX connections or ISDN phones or 1/2/4 E1/T1 PRI ports to connect ISDN PRI PBX.
Meet the family
SN4400 Series
The SmartNode 4400 VoIP Gateway-Router provides 12 to 32 analogue FXS or FXO interfaces to connect phones, fax or PSTN trunk lines to your IP-based communications (IP PBX, UC systems and SIP Trunks).
Preserve investments in legacy phone equipment while taking the next steps toward unified communications with the SN4400 VoIP Gateway-Router. Providing 12 to 32 FXS or FXO interfaces and two 10/100/1000 Ethernet, the SN4400 with built-in IP Router delivers secure, prioritised unified communications.
Key Features
- 12 to 32 analogue FXS or FXO
- Full SIP and T.38 support
- 2x 1Gb Ethernet Ports
- Complete access router
- DownStreamQoS
- Voice-over-VPN

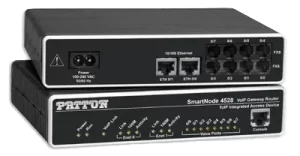

SN4520 Series
The SmartNode SN4520 Series supports up to eight simultaneous calls, connects to any legacy telephone or PBX, and provides dial tone, ringing, and caller-ID. When equipped with FXO ports, the local PSTN enables local calling, enhanced toll-bypass services, and fallback configurations. ClearConnect adaptive network monitoring ensures your call always gets connected even if the VoIP link goes down or becomes congested.
With dual 10/100 Ethernet ports, the SN4520 Series provides IP routing with guaranteed Quality of Service. Voice traffic is prioritised, while LAN/IP traffic shaping permits efficient access to the Internet and corporate networks. As a complete enterprise router, the SN4520 supports DHCP, NAT, Firewall/ACL, and PPPoE clients. While IPSEC VPN and VLAN tunnel data while DES, 3DES or AES enables secure voice and data over the public network.
Key Features
- Up to 8 simultaneous calls
- Full SIP and T.38 support
- 2x 100Mb Ethernet Ports
- Complete access router
- Toll-Quality VoIP
- Advanced Local Call Switching

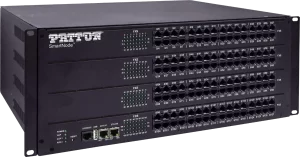

SN4740
The SmartNode 4740 VoIP Gateway enables users to preserve investments in legacy phone equipment while taking the next step towards unified communication. Providing 16 to 128 FXS and soon FXO interfaces and two 10/100/1000 Ethernet ports, the SN4740 delivers a reliable, cost-effective solution for the Enterprise.
The advanced call-router functionality includes least-cost call routing with flexible dialled-number plan support. The SmartNode survivability suite provides SIP Trunk and PSTN fallback to ensure business continuity if the IP network fails. In addition, the SmartNode delivers a smooth transition to All-IP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider’s number porting process.
Key Features
- Up to 128 FXS ports
- Full VoIP protocol support
- 2x 1Gb Ethernet Ports
- Complete access router
- Toll-Quality VoIP
- eSBC Upgrade Option

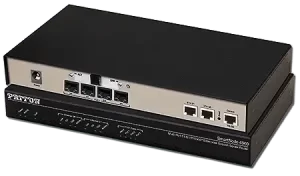

SN4980 Series - T1/E1/PRI interface
The SmartNode 4980A VoIP Gateway-Router-eSBC allows Enterprises to IP-enable their legacy PBX systems. The SN4980A Series now has more state-of-the-art features such as SIP-TLS, SRTP, TR-069, Patton Cloud connect, Survivability features, and much more.
The SN4980A supports any-to-any multi-path switching (simultaneous SIP, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec, OpenVPN, or L2TP tunnelling protocol in addition to SIP-TLS & SRTP. Providing one to four T1/E1/PRI and two 10/100/1000 Ethernet ports for up to 120 VoIP calls, the SN4980A with built-in IP Router delivers secure, prioritised unified communications.
Key Features
- Session Border Controller
- 15 to 120 VoIP calls
- Failover via ISDN or WAN
- 2x 1Gb Ethernet Ports
- QoS and Security
- VoIP Transcoding
SN5530
The SN5530 eSBC router is the perfect choice for All-IP applications where legacy, non-replaceable ISDN equipment has to be integrated into a UCC environment. For pure All-IP Networks, the SmartNode acts as a service termination point towards the enterprise with an integrated VDSL / ADSL WAN interface.
With the separate config domain feature, the SN5530 will be the service demarcation point for SIP Trunk service providers, where the local administrator can be limited to only modifying configuration settings facing the LAN IP PBX.
The SN5530 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device, providing 2 to 8 BRI ports for up to 16 simultaneous phone or fax calls.
Key Features
- Session Border Controller
- 2 to 8 BRI ports
- Up to 16 simultaneous calls
- 2x 1Gb Ethernet Ports
- Broadband Access – ADSL/VDSL, G.SHDL, Fibre (SFP)
SN5540
The SmartNode 5541 is a cost-effective router + eSBC with integrated Broadband access and up to 8 FXS/FXO ports supporting high-level VoIP and network security. It can do up to 200 SIP to-SIP calls, of which four can be transcoded. The SmartNode acts as a service termination point toward the enterprise with an integrated Broadband access termination for G.SHDSL, VDSL, ADSL or Fibre SFP.
The SN5540 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device.
Key Features
- Session Border Controller
- Up to 8 (FXS/FXO) Analogue Ports
- Up to 200 Sip-to-Sip calls
- 2x 1Gb Ethernet Ports
- Broadband Access – ADSL/VDSL, G.SHDL, Fibre (SFP)

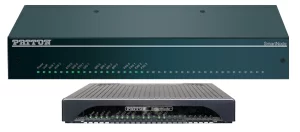

SN5550
The SmartNode SN5550 Enterprise Session Border Controller bridges a wide range of IP-PBX products to their SIP Trunk service providers. Its built-in security features, such as SIP TLS, the LAN networks from fraud strikes out of the Internet.
The combo configuration of 2 BRI/2 FXS/FXO or 4 BRI/4 FXS/FXO fits the requirements of small and medium-sized enterprises requiring a solution to enable legacy equipment for VoIP networks.
Key Features
- Session Border Controller
- 2 or 4 ISDN BRI S0/T0 ports
- 2 or 4 FXS/FXO ports
- Interoperable for data, voice and T.38
- Broadband Access – ADSL/VDSL, G.SHDL, Fibre (SFP)
SN5570
The SmartNode SN5570 Series Enterprise Session Border Controller + Router bridges a wide range of IP-PBX products to their SIP Trunk service providers. With its built-in Security features such as SIP TLS, SRTP, Stateful Firewall and Secure provisioning, it protects the LAN networks from fraud strikes out of the Internet.
The SN5570 supports 1 or 2 ISDN E1/T1 PRI ports. 30 simultaneous G.722, T.38 or G.711 ISDN to VoIP calls. Including SIP TLS and SRTP support for 30 calls.
Or up to 16 SIP-to-SIP transcoded calls (e.g. G711 to G722 or RTP to SRTP)
The SmartNode SN5570 is the solution for service providers and network integrators looking for a VoIP product that matches ISDN standards regarding features and quality and solves SIP-to-SIP interoperability issues.
Key Features
- Session Border Controller
- 1 or 2 ISDN E1/T1 ports
- Up to 30 simultaneous G.722, T.38 or G.711 ISDN to VoIP calls
- DECT PBX interoperability
- Broadband Access – ADSL/VDSL, G.SHDL, Fibre (SFP)
